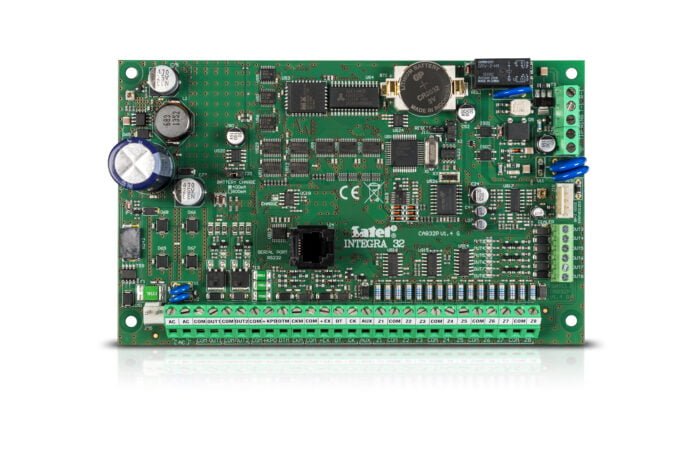

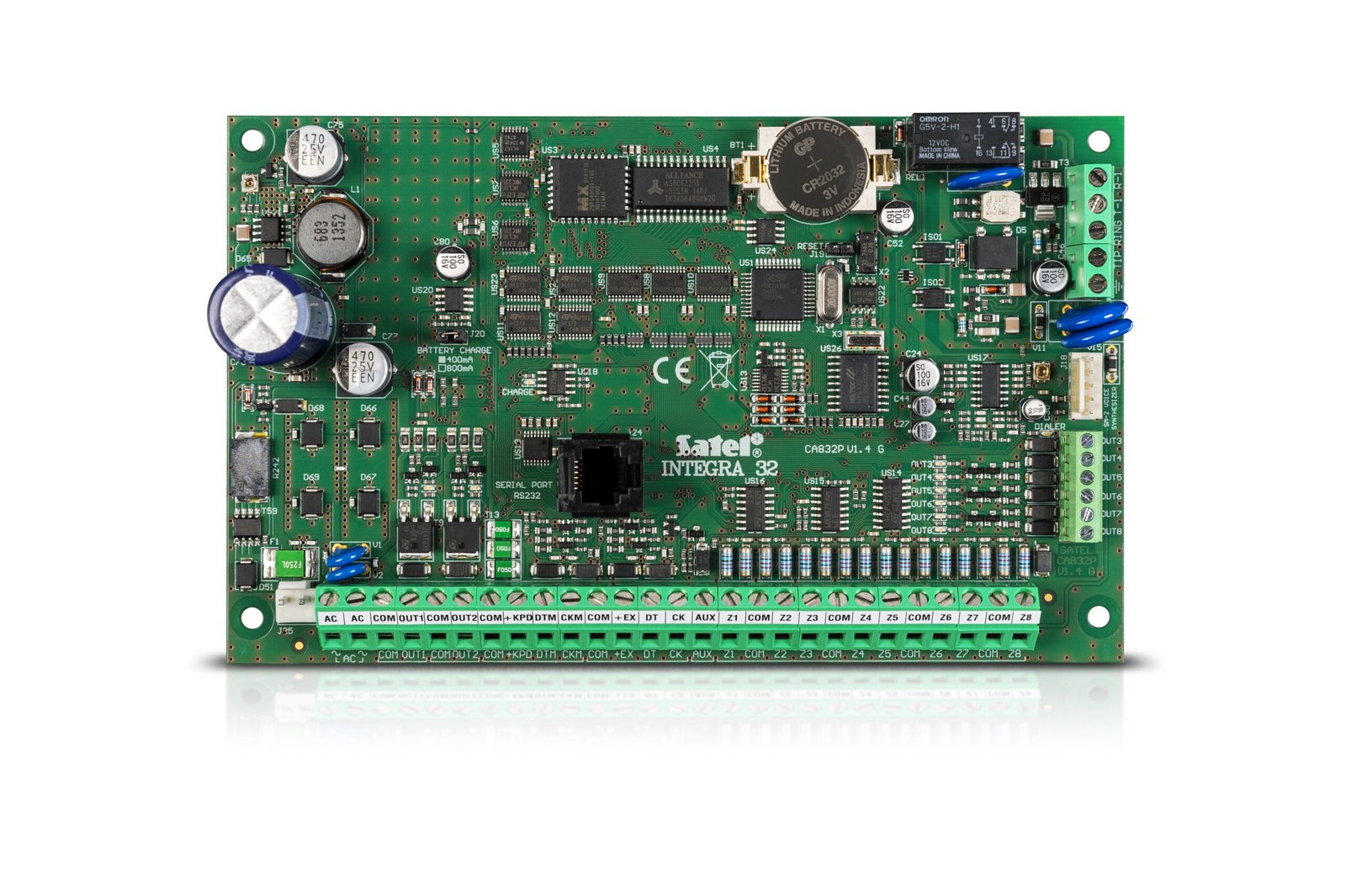

Satel Grade 2 Control Panel
Price range: £79.00 through £129.00
Advanced alarm control units providing alarm functions and optional implementation of home automation and access control systems. With a broad range of extension modules, their applications can be adapted to individual needs: from minor systems to extensive installations. Communication features combined with additional modules, such as GSM and TCP/IP, are a major advantage of the INTEGRA control units.
| Zones | 32, 64, 128 |
|---|---|
| Brand | Satel |
Features
16 up to 128 zones
32 partitions, 8 objects
16 up to 128 programmable outputs
Keypads and expansion modules buses
Built-in telephone dialer with monitoring, voice messaging and remote control features
Access control and home automation features
System operation with touchscreen keypads, LCD keypads, partition keypads, keyfobs and proximity cards or remotely with mobile phone or PC
64 independent timers for automatic control
Event log with 22,527 entries and event printing feature
240+8+1 users
RS-232 port – RJ type socket
Flash firmware upgrade with a PC
Built-in 3 A switching mode backup power supply with battery charging and diagnostic features
Option of not reporting possible problems with connecting to the SATEL server as a failure
Parturient ut id tellus vulputatre ac ultrlices a part ouriesnt sapien dignissim partu rient a a inter drum vehicula. Ornare metus laoreet tincidunt eros rolem tristique pretium malada.
Cras rhoncus vivamus luctus platea arcu laoreet selm. Curae est condenectus sed hac a parturient vestibulum.
GVS KNX 1-10V Dimming Actuator 4-fold
Price range: £165.00 through £175.00
GVS KNX Air Quality Sensor V2
£305.00
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
Satel 2 Antennae Wireless Controller
ABAX 2 wireless system controller
ACU-220 uses the 868 MHz (or 915 MHz*) radio band, in which 4 channels have been allocated. Communication between components of the ABAX 2 system is encrypted (AES standard) and two-way, all transmissions being acknowledged. The controller works together with the INTEGRA, INTEGRA Plus, VERSA and PERFECTA 64 M control panels (connection via communication bus), making expansion of the alarm system possible by adding wireless devices. It can also interact with any other alarm control panel, automation controller (when using programmable zones and outputs of the module), or work in stand-alone mode.
ACU-220 meets the high EN 50131 requirements for Grade 2.
An advantage of the controller is its excellent transmission range, which can be up to 2000 m in the open area, depending on the device working with the controller and their operating conditions. Such good communication parameters are obtained thanks to the use of a modern radio system and antenna diversity. Depending on the level of received radio signal, ACU-220 automatically selects the optimal antenna to be used to receive the transmission.
The system settings are configured in the ABAX 2 Soft program, which is installed on the computer and has also extensive diagnostic capabilities. When working with the INTEGRA, INTEGRA Plus, VERSA or PERFECTA 64 M control panels, the DLOADX or PERFECTA Soft program or a keypad are used for the configuration. The settings can be changed and the firmware of enrolled wireless devices can be updated by radio, without having to demount them.
Satel 4.3″ Touch Screen Keypad with MIFARE Card Reader
The INT-TSG2R keypad is designed for operating and programming the INTEGRA, INTEGRA Plus, VERSA and PERFECTA 64 M control panels, It is an ideal solution for users seeking easy daily operation of the alarm system and building automation elements, including the KNX system. The combination of large size and universal design makes the device perfectly suited to both modern and traditional interiors.
Satel 8 Zone Expansion Module
The module is designed for use in conjunction with the control panels of INTEGRA, INTEGRA Plus, VERSA, VERSA Plus, PERFECTA families as well as with ACCO-NT2 access control panel. This device replaces the CA-64 E/CA-64 EPS module. The INT-E offers expansion of the system by 8 wired zones as well as allows direct connection of roller shutter and vibration detectors. The additional tamper input facilitates detection of unauthorized opening of the enclosure in which the module is installed.
Satel Addressable Bus Expansion Module
The module is designed for connecting addressable detectors to the control panels of INTEGRA and INTEGRA Plus families. This device replaces the CA-64 ADR module. The use of INT-ADR facilitates wiring, particularly where extensive systems are involved. The addressable detector bus is independent of the control panel expander bus, which makes possible the hybrid implementation of systems, combining addressable and directly connected components.
Satel Grade 3 Control Panel
Due to their full compliance with the requirements of EN50131 Grade 3, the INTEGRA Plus control units are perfectly fit for implementation of advanced security systems at locations with particularly high risk of burglary, such as banks, jewellery stores or public utility facilities. The control units are characterised by extended functionality, due to which they can be used for implementation of access control systems or even intelligent building solutions.
Satel Indoor Acoustic Siren
SPW-210-BL is a siren with acoustic signaling, designed for indoor installation and provided with piezoelectric transducer. There are three types of modulated tones with 120 dB intensity to choose from. The loud signal ensures good audibility over a large area, e.g. in warehouses, production halls, parking lots inside buildings, etc. Enclosure of the siren is made of polycarbonate, thus ensuring high mechanical strength and aesthetic appearance of the device that remains unchanged over time. The siren is provided with tamper protection against opening or tearing off the wall. This model complies with the EN 50131-1 requirements for Grade 2 security.
Satel Zone and Output Expansion Module
The module is designed for use with the control panels of INTEGRA and INTEGRA Plus families, as well as with ACCO-NT access control panel. This device replaces the CA-64 PP module. The INT-PP allows for expansion of the control panel by additional 8 wired zones and 8 programmable relay and OC outputs. The additional tamper input facilitates detection of unauthorized opening of the enclosure in which the module is installed.
