Satel DIN Rail Output Expansion Module
£89.00

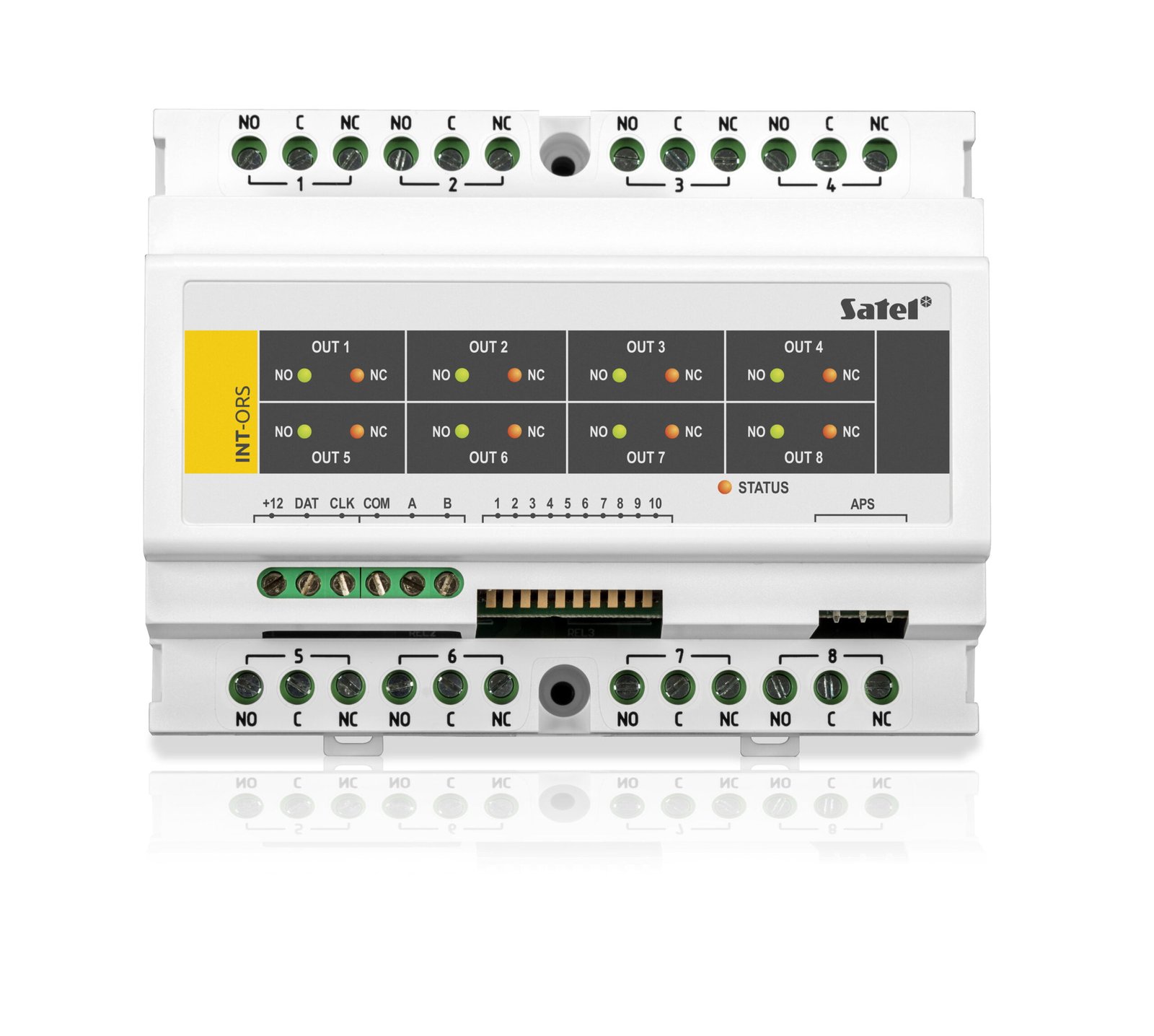

The INT-ORS module allows for expansion of the INTEGRA/VERSA/PERFECTA and ACCO NET systems by 8 programmable relay outputs. It is designed for implementation of direct operation of 230 V devices using control panels of the INTEGRA, INTEGRA Plus, VERSA, VERSA Plus, PERFECTA families. This module is also a great option where the capabilities offered by these panels are to be used to create an automation system. The device can also work with ACCO-NT2 access control panels. The INT-ORS is designed for mounting on a standard 35 mm DIN rail.
| Brand | Satel |
|---|
1 in stock
Features
8 relay outputs for direct control of 230 V mains powered appliances
Installation directly on 35 mm DIN rail
Optical indicators of relay state
Cooperation with ACCO NET system (since 1.4 release)
Parturient ut id tellus vulputatre ac ultrlices a part ouriesnt sapien dignissim partu rient a a inter drum vehicula. Ornare metus laoreet tincidunt eros rolem tristique pretium malada.
Cras rhoncus vivamus luctus platea arcu laoreet selm. Curae est condenectus sed hac a parturient vestibulum.
GVS KNX 1-10V Dimming Actuator 4-fold
Price range: £165.00 through £175.00
GVS KNX Air Quality Sensor V2
£305.00
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
Satel Compact Wireless System Controller
ACU-280 provides two-way, encrypted (AES standard) communication in the 868 MHz (or 915 MHz)* band - all radio transmissions between components of the ABAX 2 system are acknowledged. It works together with the INTEGRA, INTEGRA Plus, VERSA and PERFECTA 64 M control panels, enabling wireless devices to be added to the alarm system.
Because of its small size, it requires little space for installation.
The device meets the high EN 50131 requirements for Grade 2.
An advantage of the controller is its excellent transmission range, which can be up to 1600 m in the open area, depending on the device working with the controller and their operating conditions. Such good communication parameters are obtained thanks to the use of a modern radio system.
The controller can be programmed via the control panel, a keypad, or the DLOADX or PERFECTA Soft configuration programs. For advanced diagnostics of the wireless system operation, the ABAX 2 Soft program is used. Configuration, as well as firmware upgrade and testing of enrolled wireless devices are carried out by radio, without having to demount them.
Satel GPRS Communication Module
INT-GSM is a GPRS communication module that allows INTEGRA and INTEGRA Plus series of alarm control panels to communicate via GSM network. The device operates on control panel’s keypad bus.
It supports two SIM cards, through which it can receive messages and incoming calls - at the same time. All GPRS transmissions are encrypted in the AES-192 standard.
INT-GSM reports events to two monitoring stations (eg. security agencies) via the GSM network. For this purpose it uses GPRS and SMS messages, with the possibility of setting the priority for each of the mentioned transmission paths.
Event notifications are created automatically based on the control panel event memory. The module sends information via SMS messages or CLIP service (up to 16 numbers) and, in case of cooperation with the INTEGRA Plus control panel, also e-mails (up to 16 addresses).
Satel Grade 3 Control Panel
Due to their full compliance with the requirements of EN50131 Grade 3, the INTEGRA Plus control units are perfectly fit for implementation of advanced security systems at locations with particularly high risk of burglary, such as banks, jewellery stores or public utility facilities. The control units are characterised by extended functionality, due to which they can be used for implementation of access control systems or even intelligent building solutions.
Satel Indoor Acoustic Siren
SPW-210-BL is a siren with acoustic signaling, designed for indoor installation and provided with piezoelectric transducer. There are three types of modulated tones with 120 dB intensity to choose from. The loud signal ensures good audibility over a large area, e.g. in warehouses, production halls, parking lots inside buildings, etc. Enclosure of the siren is made of polycarbonate, thus ensuring high mechanical strength and aesthetic appearance of the device that remains unchanged over time. The siren is provided with tamper protection against opening or tearing off the wall. This model complies with the EN 50131-1 requirements for Grade 2 security.
Satel Output Expansion Module
The output expansion module, designed for use in conjunction with the control panels of INTEGRA, INTEGRA Plus, VERSA, VERSA Plus, PERFECTA families, as well as with ACCO-NT2 access control panel. This device replaces the CA-64 O-OC, CA-64 O-R and CA-64 O-ROC modules. The INT-O allows for expansion of the system by additional 8 wired outputs. An additional tamper input helps detect unauthorized opening of the enclosure in which the module is installed.
Satel Zone and Output Expansion Module
The module is designed for use with the control panels of INTEGRA and INTEGRA Plus families, as well as with ACCO-NT access control panel. This device replaces the CA-64 PP module. The INT-PP allows for expansion of the control panel by additional 8 wired zones and 8 programmable relay and OC outputs. The additional tamper input facilitates detection of unauthorized opening of the enclosure in which the module is installed.
