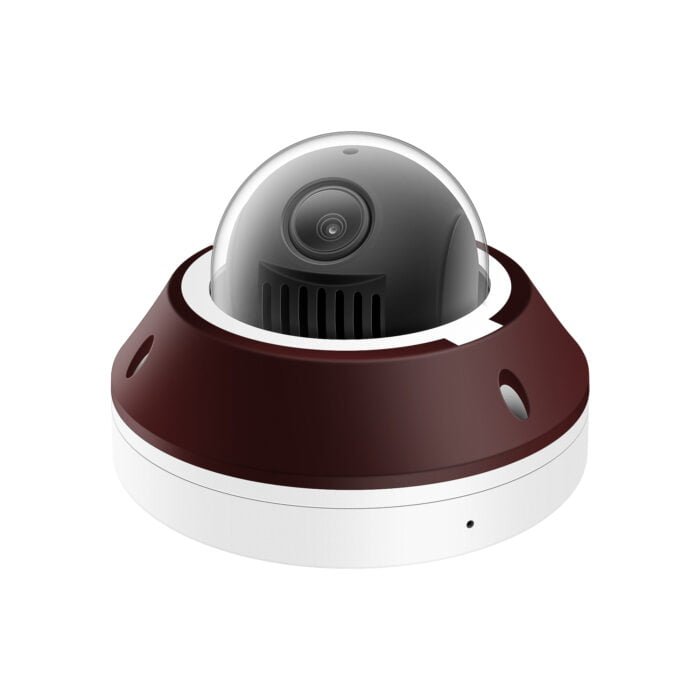

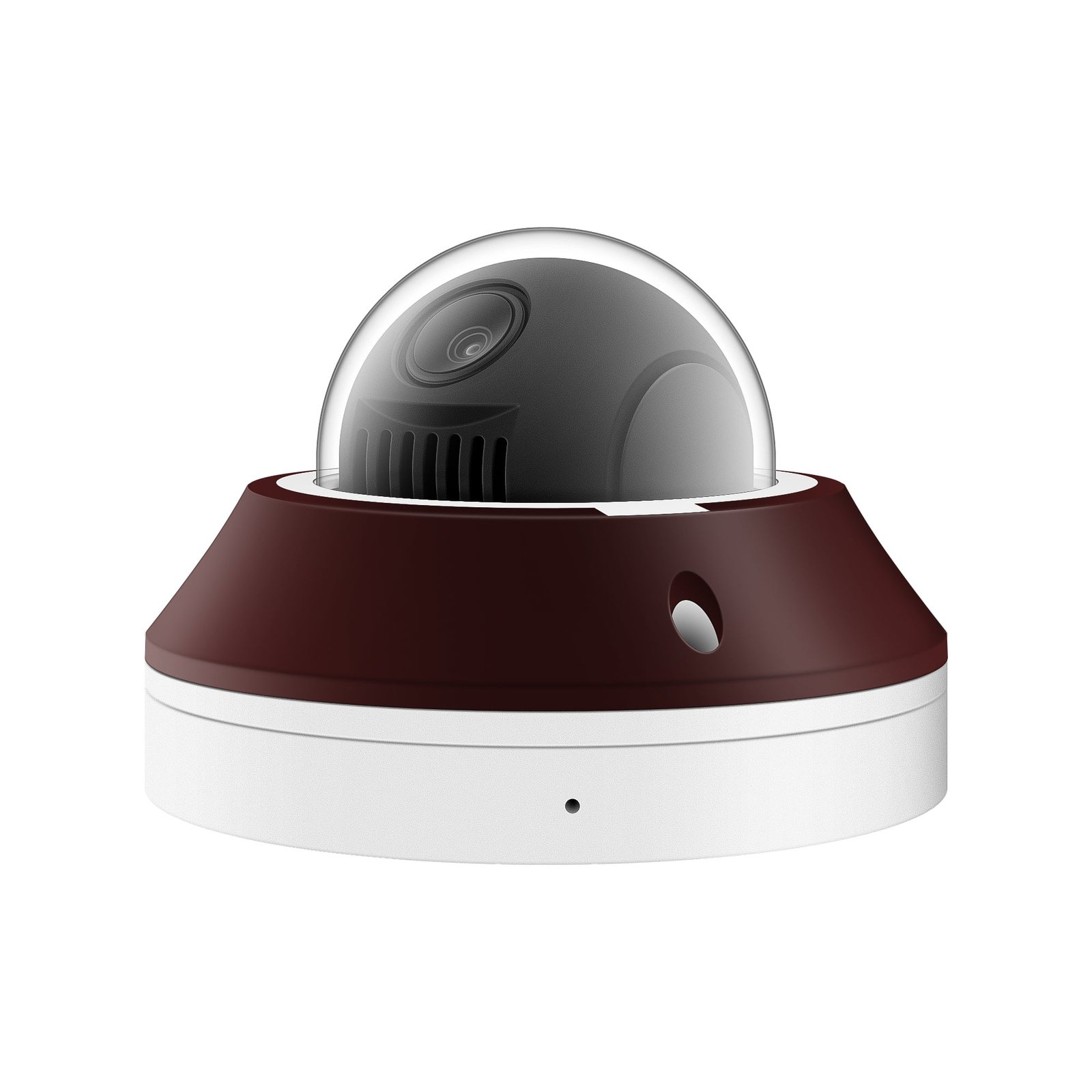

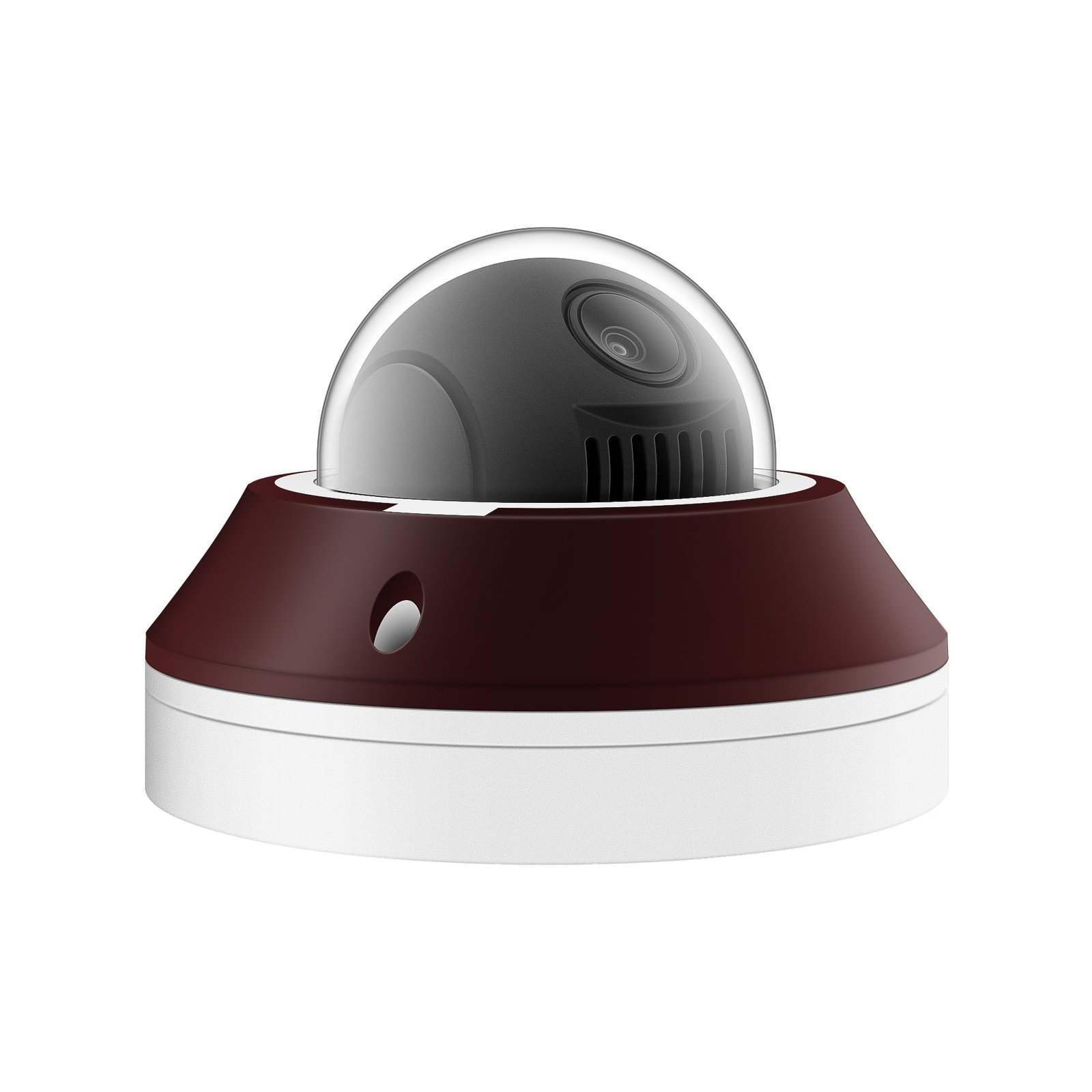

YCX 6MP 3pcs SMD Array IR Leds Camera
£69.00
Features:
- 1/2.8″Â Sony CMOS sensor
- 6 resolution 3072x2048P
- Low illumination 0.01Lux
- Network PTZ control , 3x optical zoom
- Smart Human and Vehicle Detection Alarm
- Built-in Mic and speaker, two-way audio
- Day/Night, AWB/MWB, BLC, HLC, 2D/3D-DNR, Shutter, IR-CUT
- D-WDR, Flip, Defogging
- Multiply Style OSD Overlay, Motion Detection, Privacy Mask
- RTSP and Onvif 17.06 compatible with many third-party NVR
- 264/H.265 stream media server
- Easy-to-use P2P Cloud service
- Support user authentication, video data encryption
- Support Alarm Snapshot to Email and FTP
- Multiply WEB browser IE, Firefox, Chrome, Edge, Safari
- Free PC Client, Mobile APP remote access
- RJ45 100mbps network port, IEEE802.3af 48v PoE
- Lightning protection 4000V
- 3PCS SMD Array IR LEDs, IR Distance 20M
- 8-8mm Motorized Auto Focus lens
- 350° horizontal rotation, 90° vertical range
- Horizontal speed 80°/sec
- Built-in Microphone
| Brand | YCX |
|---|---|
| Lens Length | 3X 2.8-8mm |
| Lens Type | Motorized |
| Platform | PoE |
| Resolution | 6MP |
| Style | Dome, Vandal |
1 in stock
Specifications:
| Model | M716FIR-3X-V4 |
| Camera | |
| Image Sensor | 1/2.8″ Sony CMOS |
| Effective Pixels | 6 megapixels |
| Electronic Shutter | AUTO, 1/25s ~ 1/100000s |
| Min. Illumination | 0.01Lux@F1.2(AGC ON), 0Lux IR on |
| Day/Night | Auto/Color/(B/W)/Timing |
| WDR | Digital WDR , HDR |
| White Balance | Auto/Manual |
| AGC/BLC/HLC | Support |
| DNR | 2D/3D DNR |
| Other | Multi-lines OSD, Motion Detection, Privacy Mask, Mirror |
| Encode | |
| Video Standard | H.265/H.264 |
| Video Resolution | Main Stream: 25fps@6MP(3072×2048)/5MP(2592×1944), 30fps@4MP/3MP/1080P/720PSub stream: 30fps@D1/VGA/360P/CIF, etc. |
| Video Bitrates | 512Kbps – 8Mbps, VBR/CBR |
| Audio Standard | G.711-u/G.711-a |
| IR Led | |
| IR Led | 2 pcs SMD Array IR Leds |
| IR Distance | 30 M |
| Lens                                                                                                                       | |
| Focal length | 2.8-8 mm AF Motorized lens |
| Zoom | 3x optical zoom |
| PTZ | |
| Pan/Tilt Range | Pan: 0° ~ 350°; Tilt: 5° ~ 90° |
| Manual Control Speed | 80°/Sec |
| Other Function | |
| POE | Internal POE |
| Audio | Internal Microphone |
| Reset | Cable with reset button |
| Network Services | |
| Protocol | HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS/RTMP, etc. |
| P2P | Yes |
| Web | IE, Firefox, Chrome, Edge, Safari |
| Media | CMS, Android, IOS |
| ONVIF | 17.06 compatible |
| General | |
| Network Port | 1-RJ45, 100Mbps, POE optional |
| Power Supply | 12 VDC ± 10% |
| Power Consumption | < 5 W |
| Operating Temp. | -30℃-(+60)℃, 10%-90%RH |
