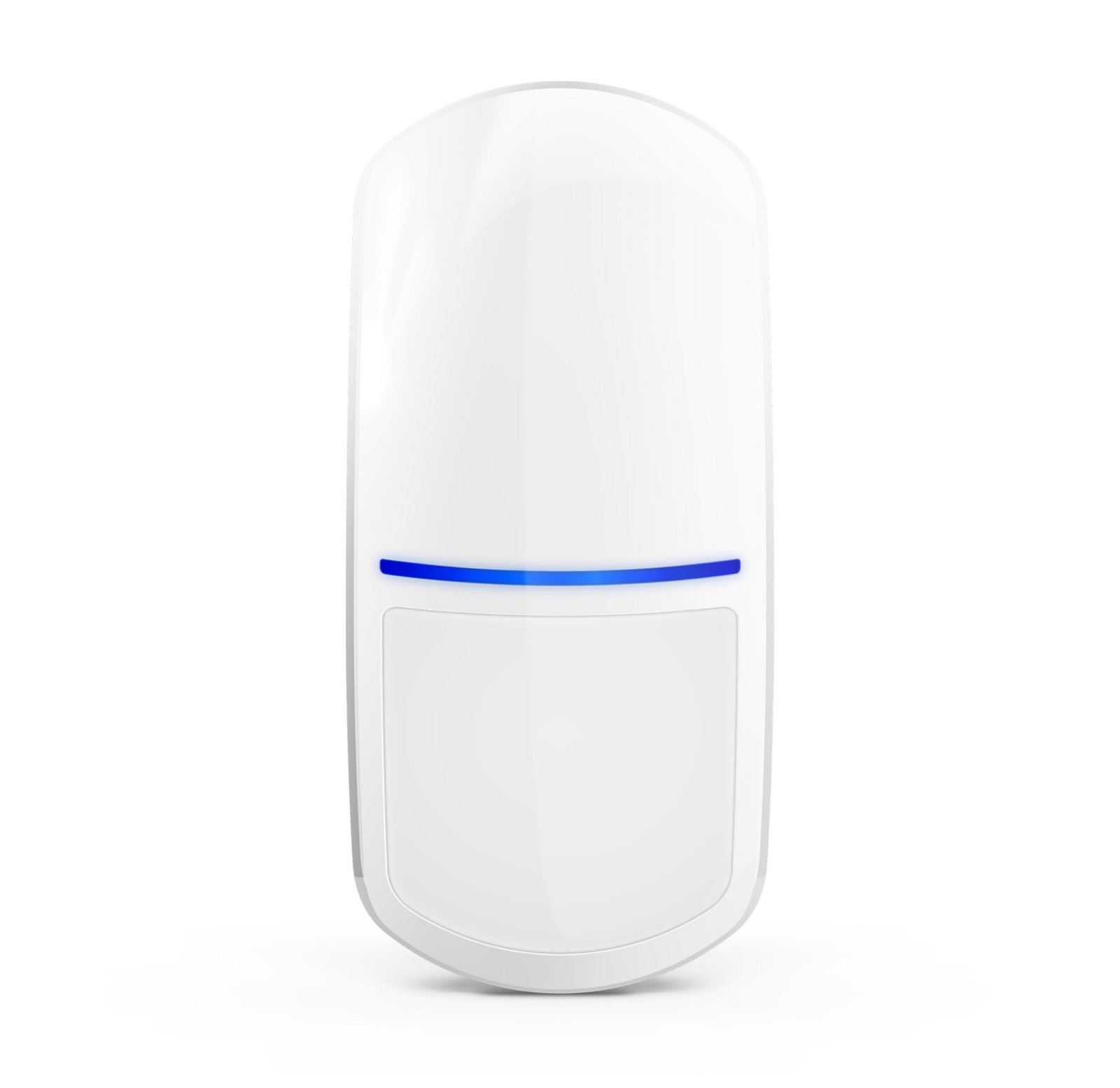

Satel Digital PIR Motion Detector
Price range: £10.00 through £29.00
SLIM-PIR detects motion in the protected area. The device can be installed on the BRACKET D adjustable wall-and-ceiling mounting holder.
| Type | Basic, With Emergency Lighting Feature, With 20kg Pet Immunity, With Emergency Lighting Feature + 20kg Pet Immunity, Pro |
|---|---|
| Brand | Satel |
Features
Certificate of compliance with the EN 50131 requirements for Grade 2
Motion detection using passive infrared (PIR) sensor
Adjustable sensitivity of detection
Digital motion detection algorithm
Digital temperature compensation
Wide-angle lens, designed specifically for the SLIM LINE detectors
Option to replace the wide-angle lens with a curtain (CT-CL2) or long-range (LR-CL2) one
Built-in end-of-line resistors (2EOL: 2 x 1.1 kΩ)
LED indicator
Selectable color of the LED indicator (4 colors available)
LED indicator remote enable/disable
Supervision of motion detection and supply voltage circuit
Tamper protection against opening of enclosure
