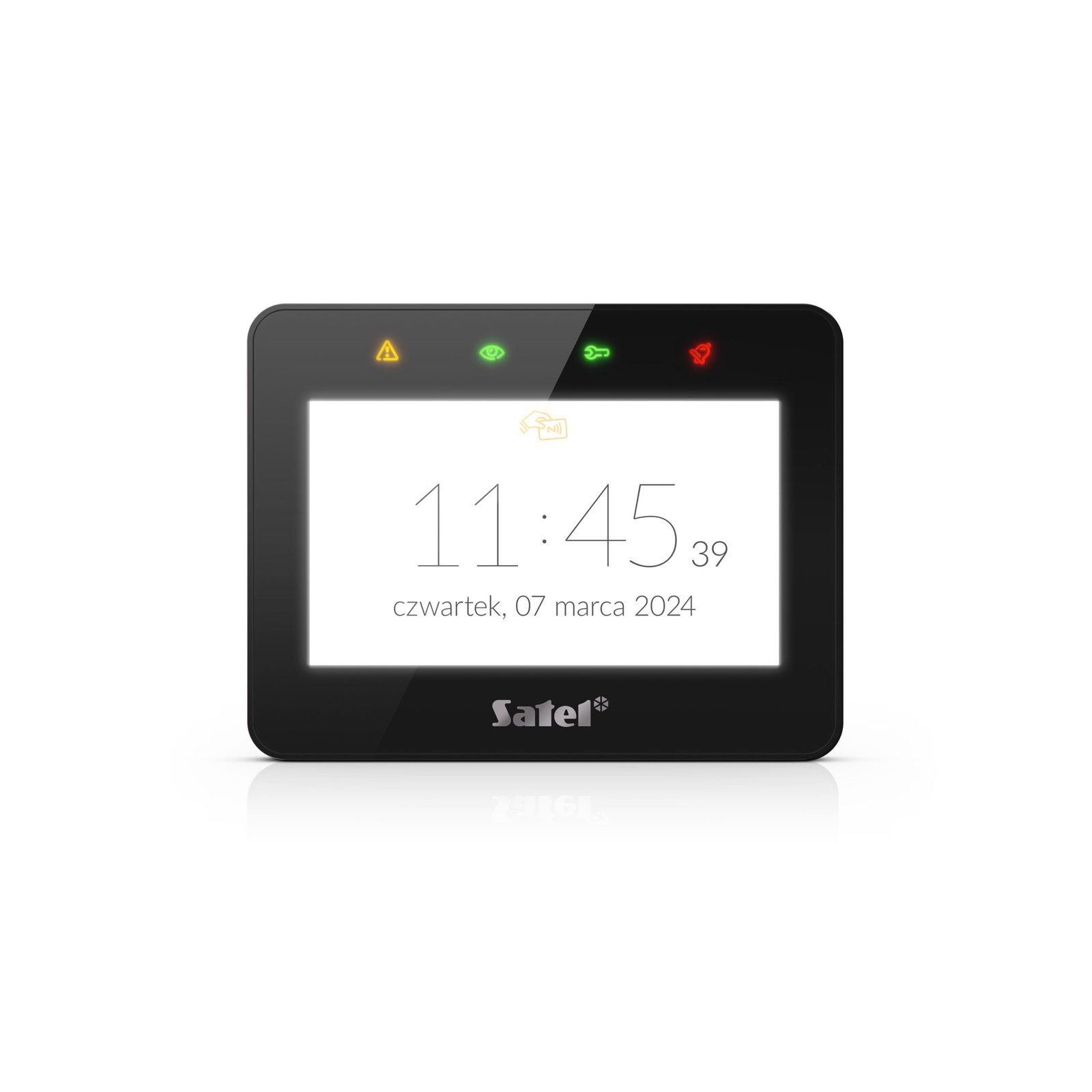

Satel 4.3″ Touch Screen Keypad with MIFARE Card Reader
£189.00
The INT-TSG2R keypad is designed for operating and programming the INTEGRA, INTEGRA Plus, VERSA and PERFECTA 64 M control panels, It is an ideal solution for users seeking easy daily operation of the alarm system and building automation elements, including the KNX system. The combination of large size and universal design makes the device perfectly suited to both modern and traditional interiors.
| Brand | Satel |
|---|---|
| Colour | Black, White |
Features
4.3″ capacitive glass touchscreen with swipe gesture support
480×272 screen resolution, 16.7 million colours (true colour)
Multi-level user customizable graphic interface
Up to 24 additional screens
Customizable and adaptable interface screens
More than 20 preset themes
Custom themes support
Widgets for keypad operation, control of the alarm system and automation devices connected to the control panel
System control via MACRO functions, which activate an entire chain of different commands (including building automation commands)
Quick activation of PANIC, FIRE, and MEDICAL alarms
Integration with the INTEGRA (INTEGRA Firmware 1.20 or higher), VERSA (VERSA Firmware 1.10 or higher) and PERFECTA 64 M control panels
Screensaver with options to display clock, date, system component statuses (zones, doors, exits), and temperatures (INTEGRA, INTEGRA Plus, PERFECTA 64 M)
Option to display a slideshow (photo frame function)
LEDs informing about the current system status, located above the screen
Built-in MIFARE proximity card reader (13.56 MHz) (supported by INTEGRA and INTEGRA Plus control panels only):
Ultralight CSN/SSN
Classic CSN/SSN/MSN
DESFire (EV1 / EV2 / EV3) CSN/MSN
2 programmable hardwired zones (INTEGRA and INTEGRA Plus only)
Support for NO and NC type detectors, as well as roller shutter and vibration detectors;
Support for EOL, 2EOL and 3EOL configuration (3EOL with the INTEGRA Plus only);
Programming of end-of-line resistor values
Built-in piezoelectric transducer for acoustic signalling
Adjustment of acoustic signalling volume
Adjustable screen brightness with day/night mode
Built-in microSD memory card slot (for storing photo frame pictures and additional screen wallpapers)
Tamper contact responding to the enclosure opening or detaching from the wall
Available in white (INT-TSG2R-W) and black (INT-TSG2R-B)
