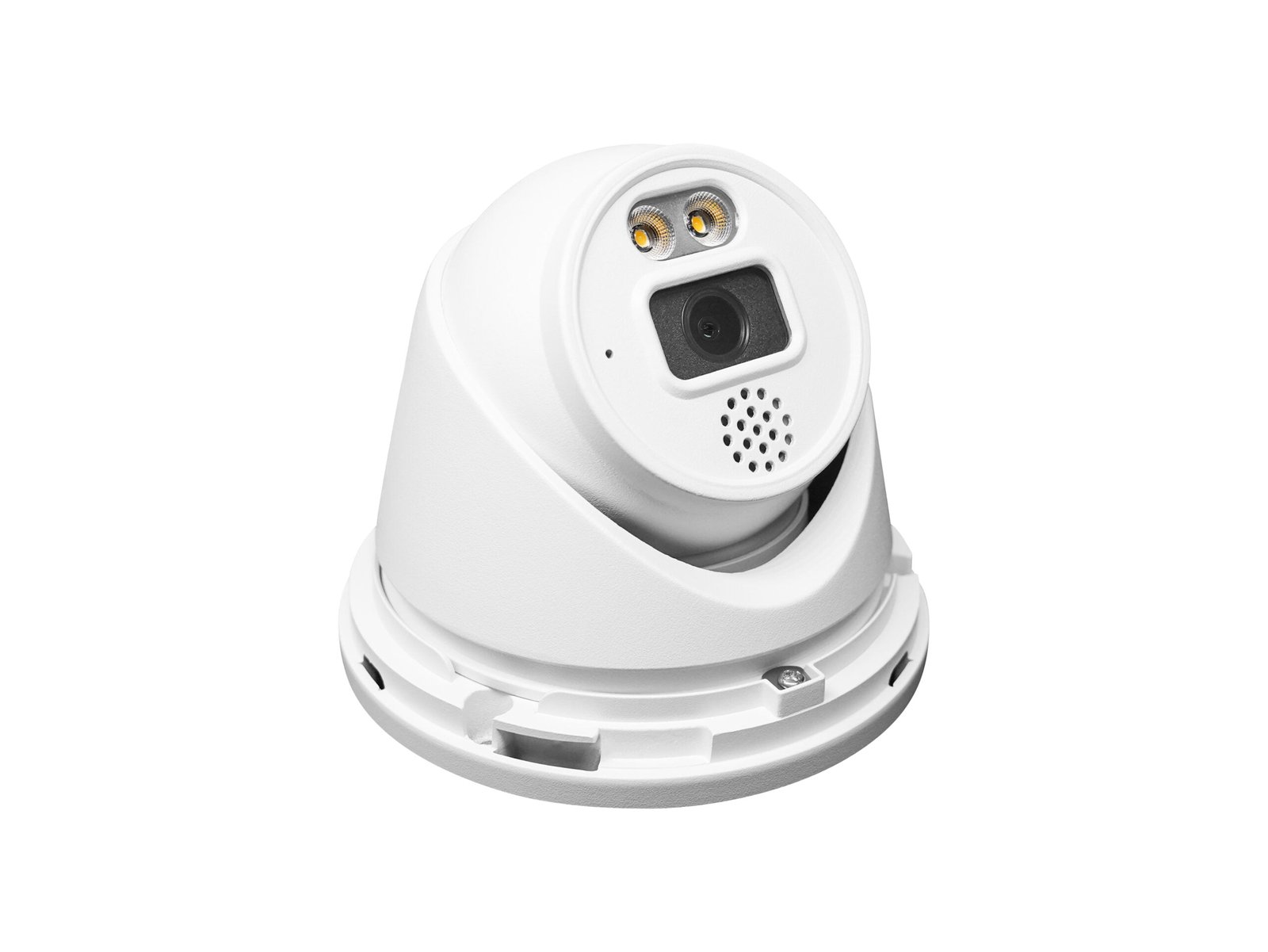

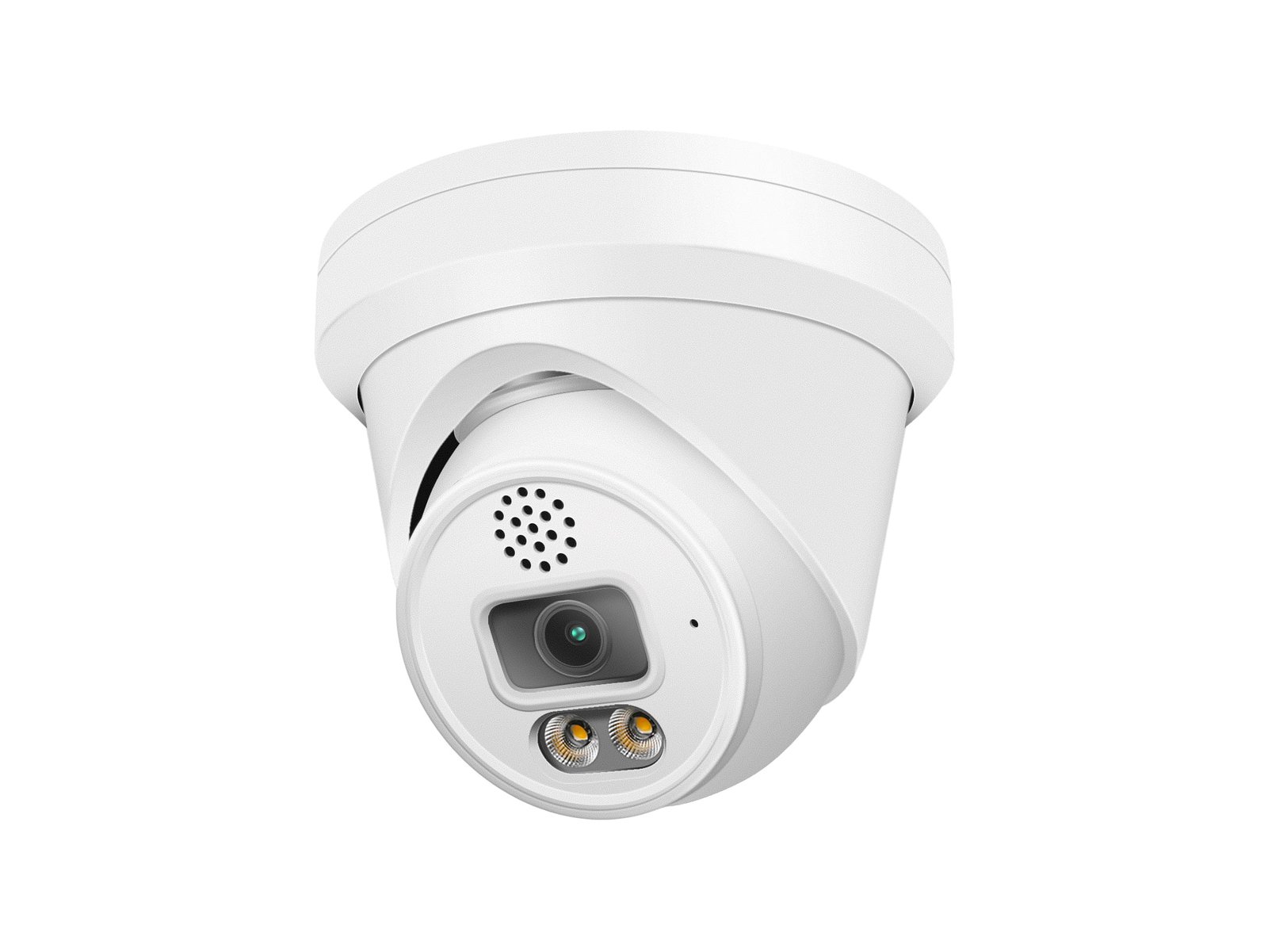

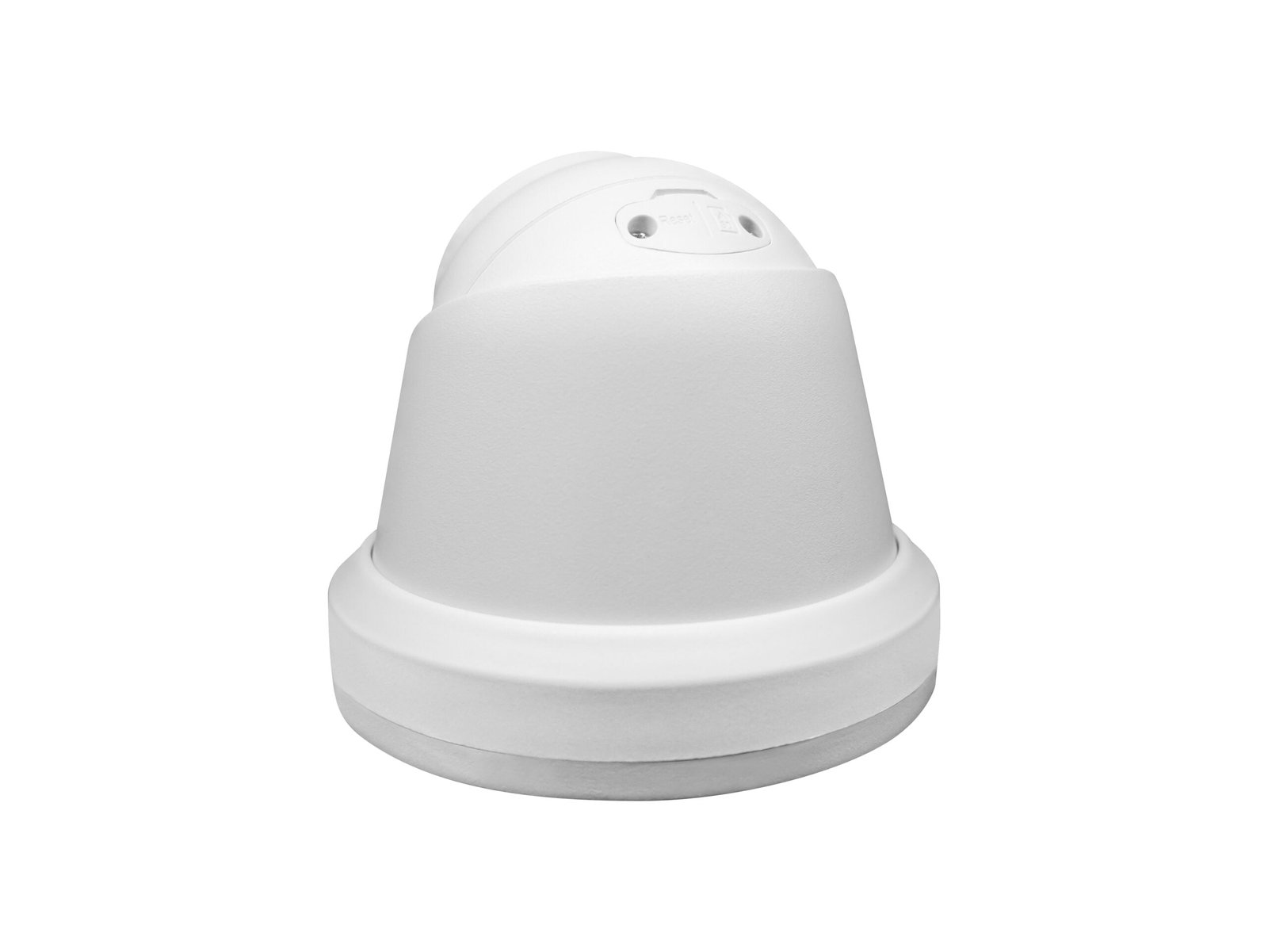

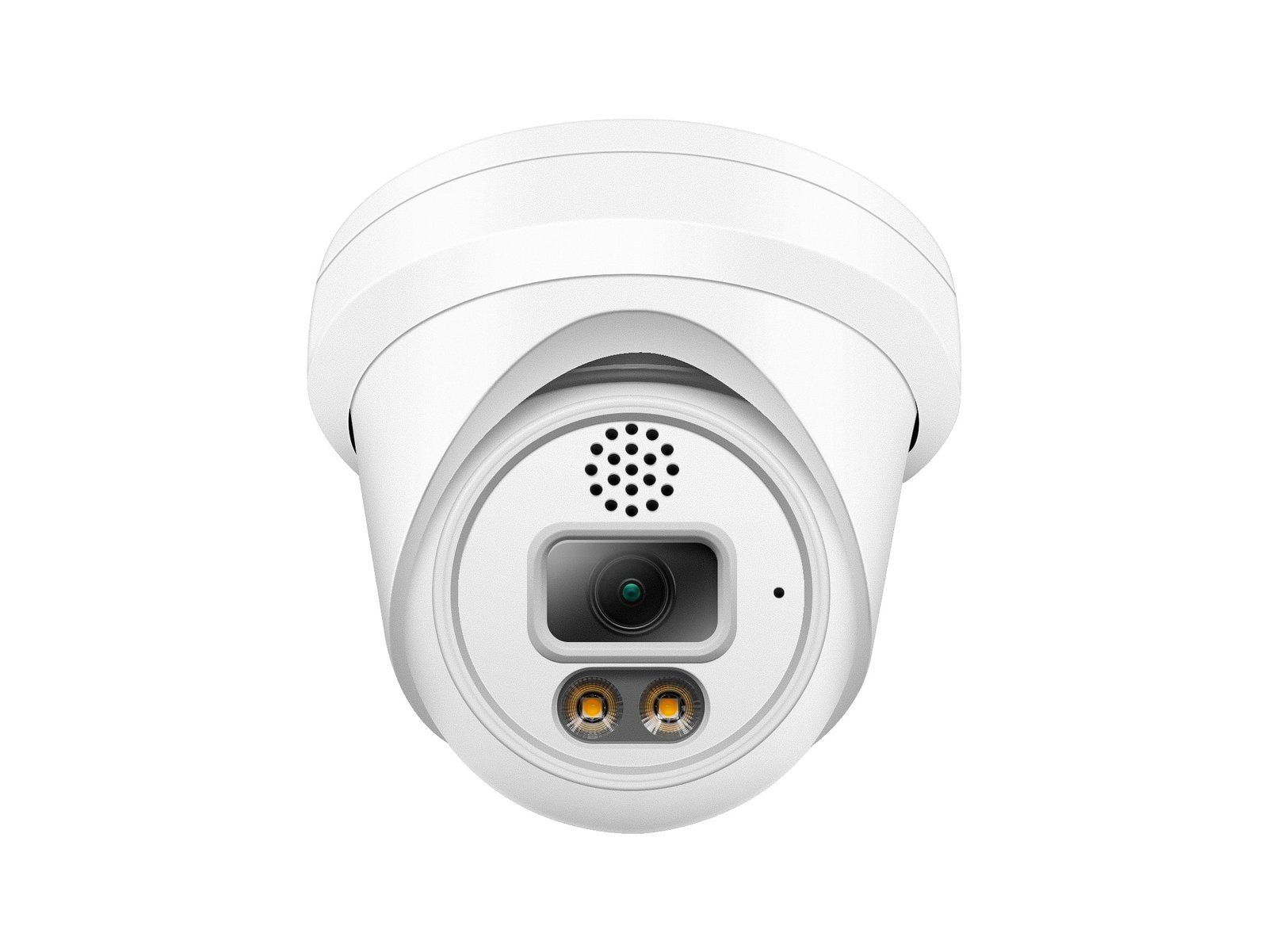

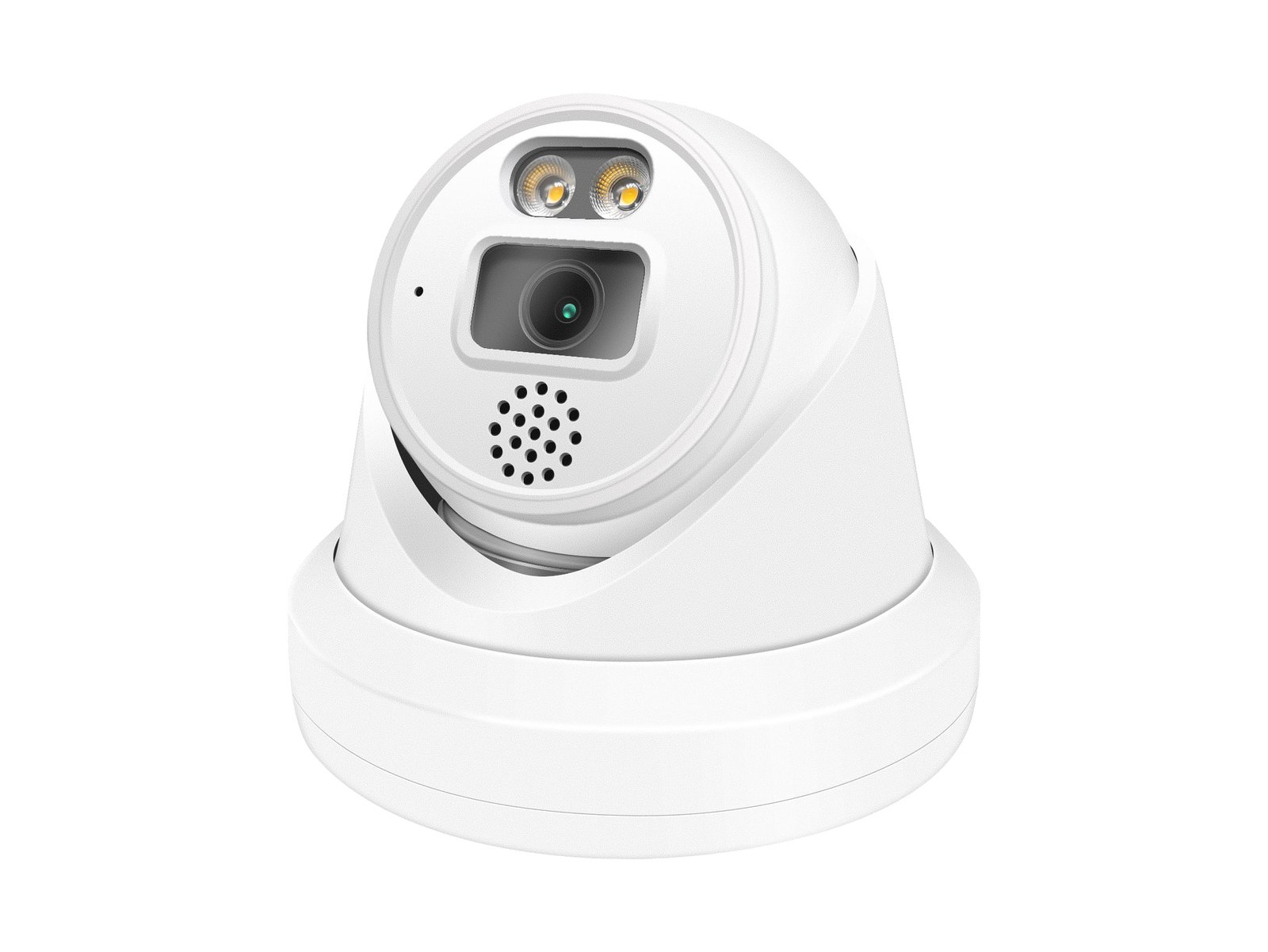

YCX 6MP 2PCS IR LED & Warm Lighting Leds Camera
£45.00
Features:
- 1/2.8″ Sony IMX335 CMOS sensor
- Full HD resolution 3072x2048P
- Ultra low illumination 0.01Lux
- Day/Night (ICR), AWB, AGC, BLC, 2D/3D-DNR, IR-CUT
- D-WDR, Motion Detection, Privacy Mask, Mirror
- RTSP and Onvif 17.06 compatible
- 265/H.264 dual-stream media server
- Easy-to-use P2P Cloud service
- Multi web browser, PC Client, mobile APP remote access
- Lightning protection 4000V
- RJ45 100mbps network port, IEEE802.3af PoE
- Strong water-proof housing, IP67
- 2 pcs Warm Light + 2 pcs IR LEDs, Light distance:25-30M
- HD 8mm F1.6 lens
- Human body/vehicle detection
- Two-way Audio & SD slot
- Colorful Imaging when detect human at night
| Brand | YCX |
|---|---|
| Lens Length | 2.8mm |
| Lens Type | Fixed |
| Platform | PoE |
| Resolution | 6MP |
| Style | Turret |
1 in stock
Specifications:
| Model | W716FADB97KA |
| Camera | |
| Image Sensor | 1/2.8″ IMX335 CMOS |
| Effective Pixels | 3072(H)×2048(V) |
| Electronic Shutter | AUTO/Manual: 1/10s ~ 1/10000s, shutter threshold |
| Min. Illumination | 0.01Lux@F1.2(AGC ON), 0Lux IR on |
| Day/Night | Auto/Color/(B/W)/Timing |
| WDR | Digital WDR / HDR |
| White Balance | Auto/Manual |
| BLC/HLC | Support |
| DNR | 2D/3D DNR |
| Light Control | Auto/Manual, Mode switch, Brightness level, OFF, Light ON Illumination |
| License Plate Mode | Yes |
| Other | Multi-lines OSD, Custom Title, Privacy Mask, Flip, Reset button |
| Encode | |
| Embedded Solution | SSC377D |
| Video Standard | H.264/H.265/H.265+ |
| Video Resolution | Main Stream: 25fps@6MP(3072×2048)/5MP(2592×1944), 30fps@4MP/3MP/1080P/720PSub stream: 30fps@D1/VGA/360P/CIF, etc. |
| Video Bitrates | 32Kbps – 8Mbps, VBR/CBR |
| Audio Standard | G.711-u/G.711-a |
| Built-in Mic | Yes, Audio Echo Cancellation |
| Built-in Speaker | Yes, Two-way audio |
| Memory Slot | Yes, maximum 512GB |
| OSD Overlay | Title and Time overlay |
| LED | |
| Leds | 2 pcs Warm Light+2 pcs IR LEDs |
| Light Distance | 25-30 M |
| Lens                                                                                                                                                               | |
| Focal length | HD 2.8mm F1.6 lens |
| Language | |
| English, simplified Chinese, Chinese Traditional, Deutsch, Italian, Turkish, Polish, Korean, Japanese, Russian, Ukrainian, Persian. | |
| Network Services | |
| Protocol | HTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP, etc. |
| P2P | Yes |
| Web | IE, Firefox, Chrome, Edge, Safari, etc. |
| Media | CMS, Android, IOS |
| ONVIF | 17.06 compatible |
| General | |
| Network Port | 1-RJ45, 100Mbps |
| Power Supply | 12 VDC ± 10% |
| POE | 802.3af/at 48V |
| Power Consumption | < 8 W |
| Operating Temp. | -30°C-(+60)°C, 10%-90%RH |
