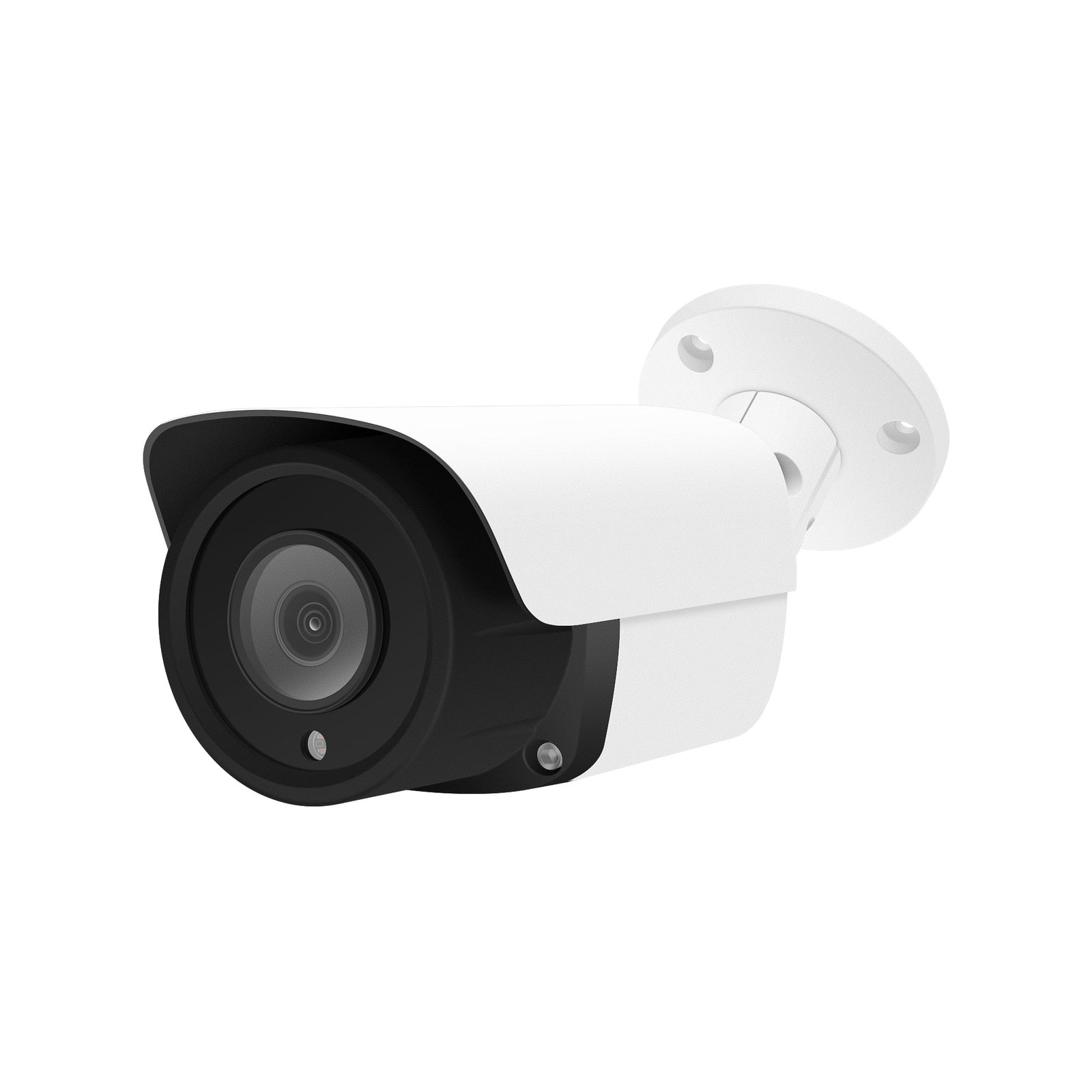

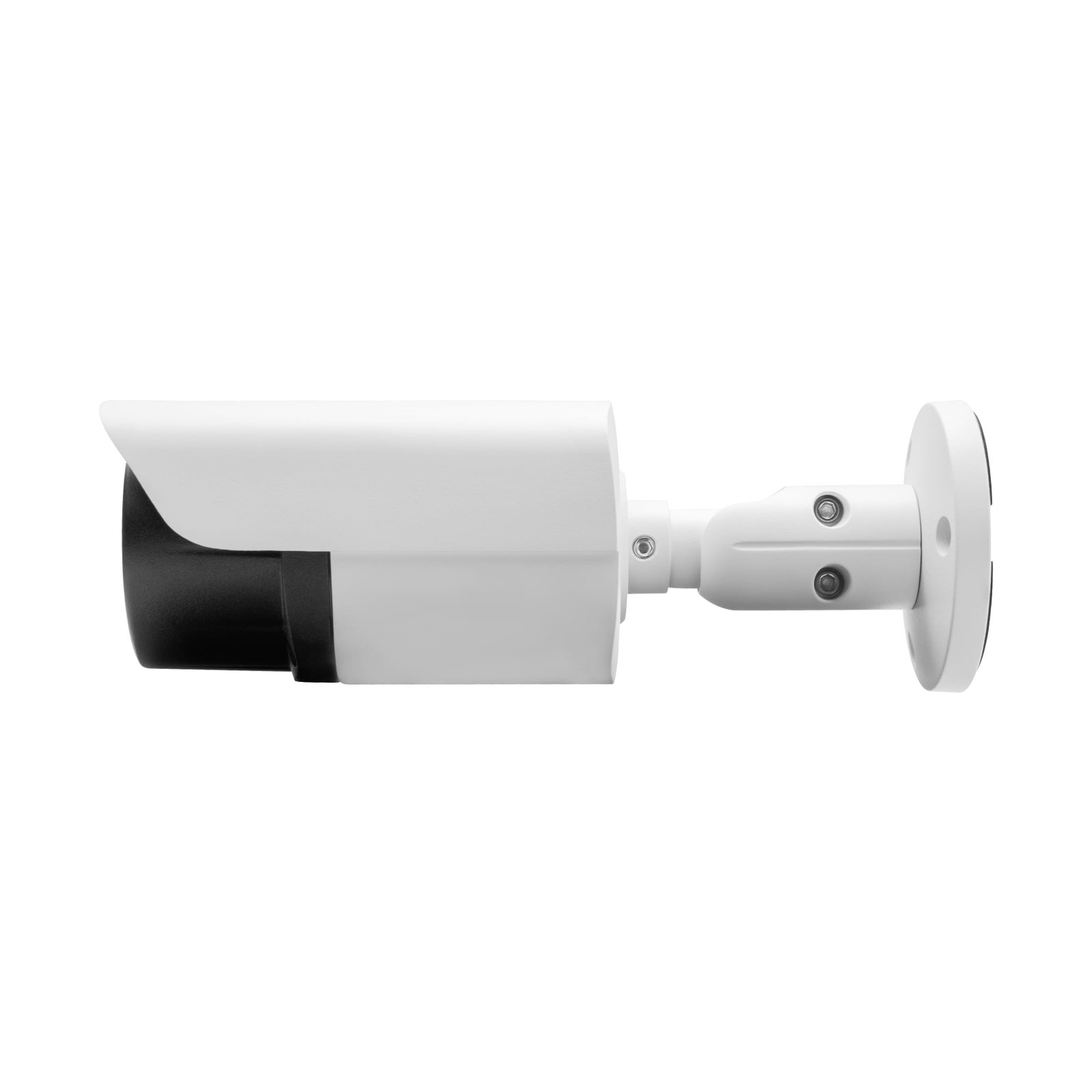

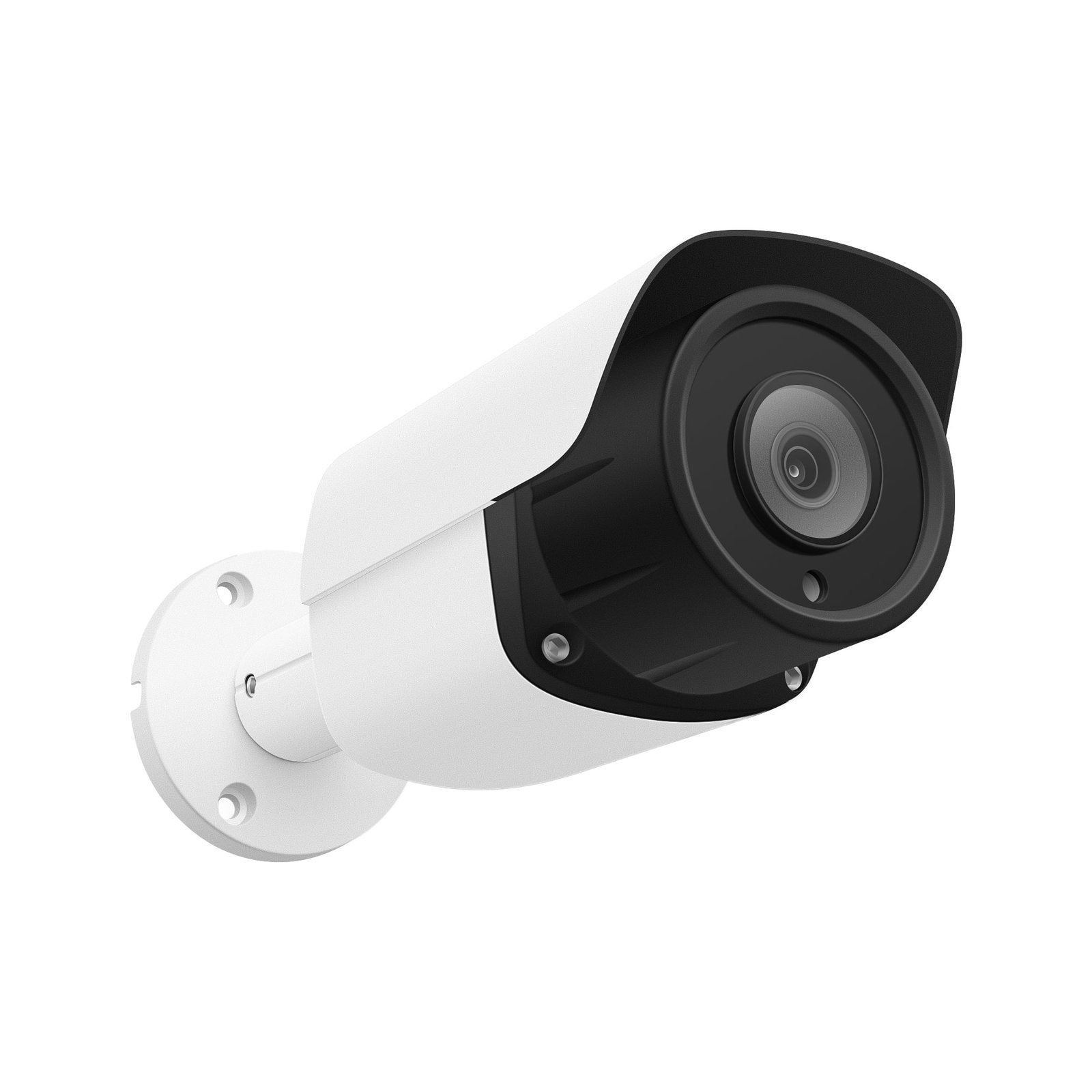

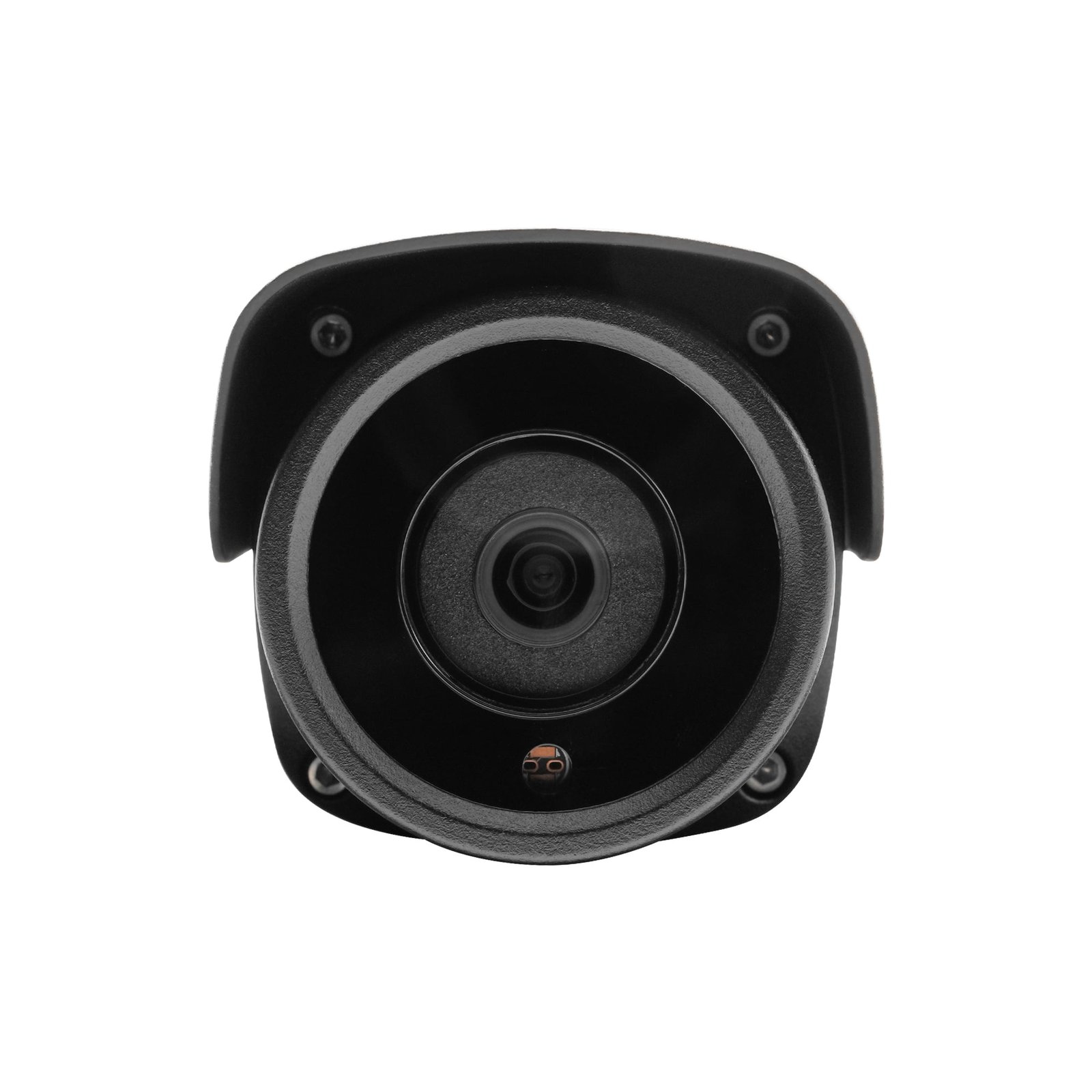

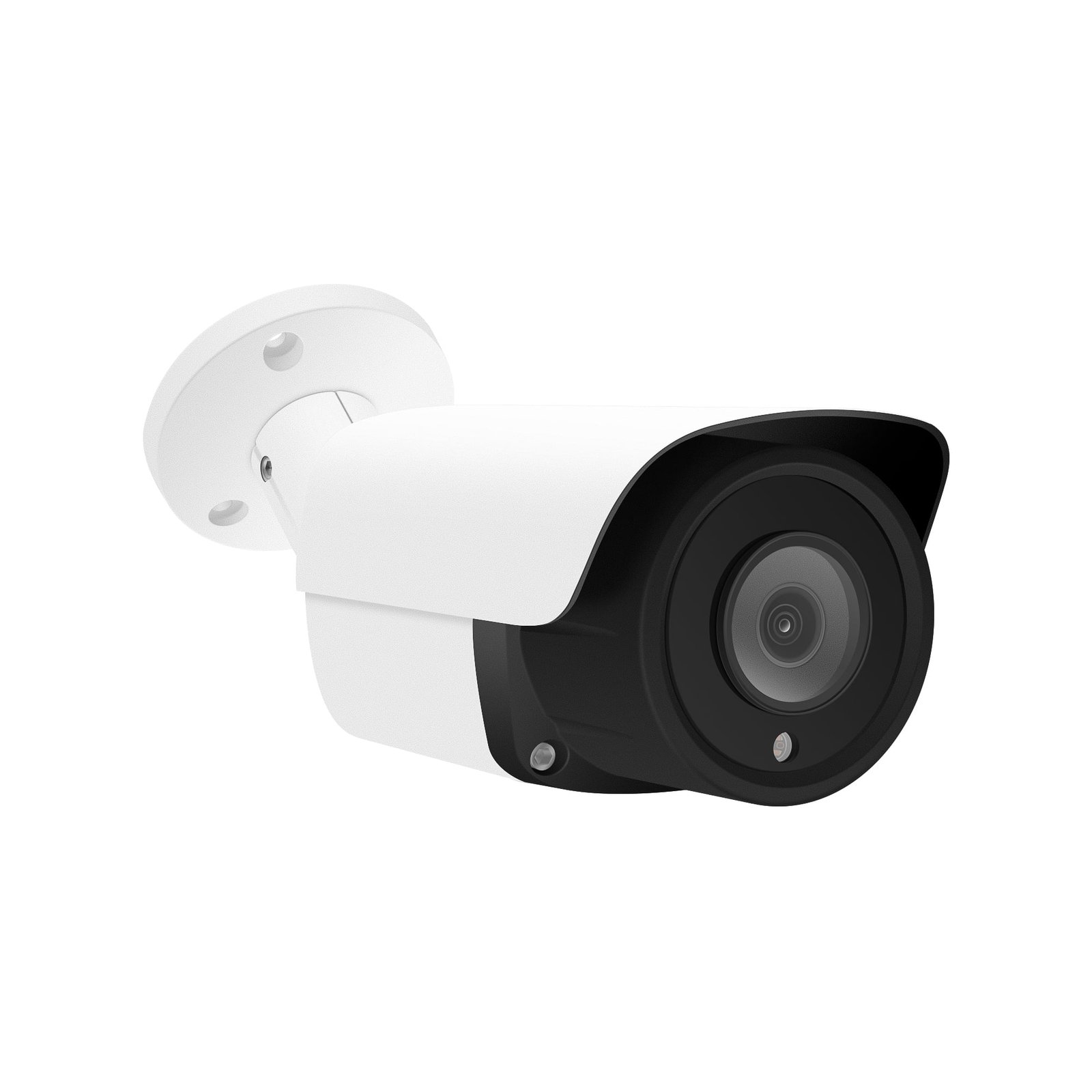

YCX 6MP 18PCS SMD IR Leds Camera
£39.00
Features:
- 1/2.8″ Sony IMX335 CMOS sensor
- 6MP HD resolution 3072 x 2048 output
- Ultra low illumination 0.01Lux
- Day/Night (ICR), AWB, 2D/3D-DNR, IR-CUT
- D-WDR, Motion Detection, Human/Vehicle Detection, Privacy Mask, Flip
- RTSP and Onvif 17.06 compatible
- 265/H.264 dual-stream media server
- Easy-to-use P2P Cloud service
- Multi web browser, PC Client, mobile APP remote access

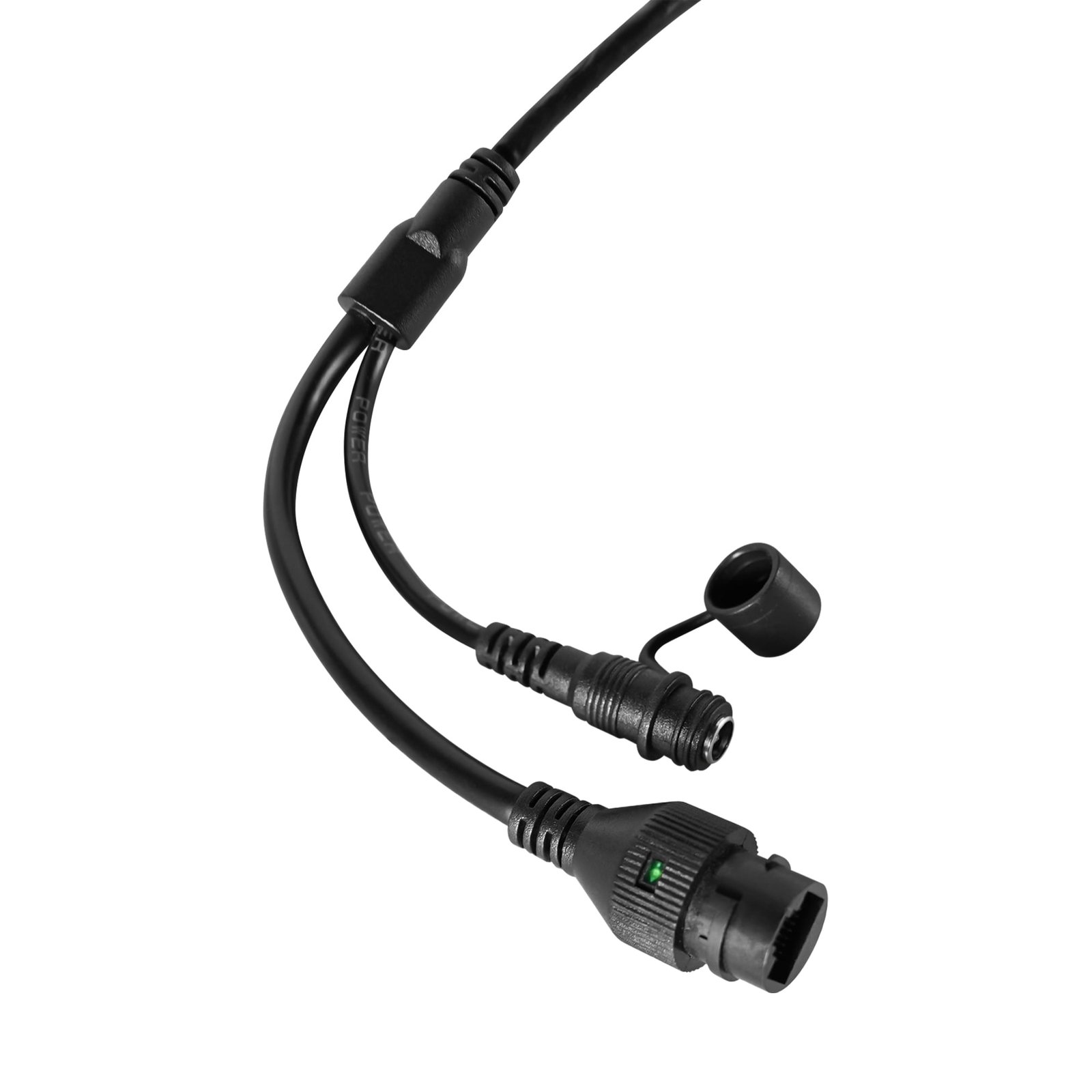

- RJ45 100mbps network port, IEEE802.3af PoE
- Lightning protection 4000V
- Strong water-proof housing, IP66
- 18pcs SMD IR LEDs, IR distance 20-30 meters
- HD 8/3.6 mm fixed lens optional
- Internal Microphone Optional
- Support Human Body & Vehicle Detection
| Brand |
YCX |
|---|---|
| Lens Length |
3.6mm |
| Lens Type |
Fixed |
| Platform |
PoE |
| Resolution |
6MP |
| Style |
Bullet |
1 in stock
Description
Specifications:
| Model | W716FAHZ37EA |
| Camera | |
| Image Sensor | 1/2.8″ IMX335 CMOS |
| Effective Pixels | 3072(H)×2048(V) |
| Electronic Shutter | AUTO/Manual: 1/10s ~ 1/10000s, shutter threshold |
| Min. Illumination | 0.01Lux@F1.2(AGC ON), 0Lux IR on |
| Day/Night | Auto/Color/(B/W)/Timing |
| WDR | Digital WDR / HDR |
| White Balance | Auto/Manual |
| BLC/HLC | Support |
| DNR | 2D/3D DNR |
| Light Control | Auto/Manual, Mode switch, Brightness level, OFF, Light ON Illumination |
| License Plate Mode | Yes |
| Other | Multi-lines OSD, Custom Title, Privacy Mask, Flip |
| Encode | |
| Embedded Solution | SSC377D |
| Video Standard | H.264/H.265/H.265+ |
| Video Resolution | Main Stream: 25fps@6MP(3072×2048)/5MP(2592×1944), 30fps@4MP/3MP/1080P/720PSub stream: 30fps@D1/VGA/360P/CIF, etc. |
| Video Bitrates | 512Kbps – 8Mbps, VBR/CBR |
| Audio Standard | G.711-u/G.711-a/AAC |
| Built-in Mic | Optional |
| Smart Detection | |
| Motion Detection | Support |
| Target Detection | Human and Vehicle Detection |
| IR Led | |
| IR Led | 18pcs SMD IR LEDs |
| IR Distance | 20-30 M |
| Lens                                                                                                                                                               | |
| Focal length | 2.8mm/3.6mm fixed lens |
| Language | |
| English, simplified Chinese, Chinese Traditional, Deutsch, Italian, Turkish, Polish, Korean, Japanese, Russian, Ukrainian, Persian. | |
| Network Services | |
| Protocol | HTTP/RTSP/FTP/NFSv3/SMTP/DHCP/NTP/RTMP, etc. |
| P2P | Yes |
| Web | IE, Firefox, Chrome, Edge, Safari, etc. |
| Media | CMS, Android, IOS |
| ONVIF | 17.06 compatible |
| General | |
| Network Port | 1-RJ45, 100Mbps |
| Power Supply | 12 VDC ± 10% |
| POE | 802.3af/at 48V |
| Power Consumption | < 8 W |
| Operating Temp. | -30℃-(+60)℃, 10%-90%RH |
Â
