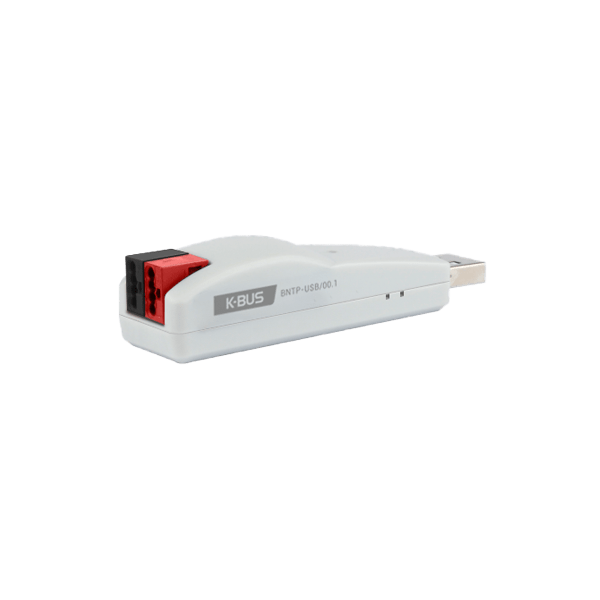

GVS KNX USB Interface
£115.00
The KNX TP-USB Interface is designed for an intelligent building control system, which is used for facilitating communication between the PC and the KNX system. The device can connect the USB communication interface to the computer through a standard type A USB2.0 interface extension line, and the other end of the device can be connected to the KNX bus via a bus connection terminal. If the KNX bus on the device side is long enough, it can also be directly connected to the computer without USB extension line.
| Brand |
GVS |
|---|
Out of stock
Specifications
Dimension: 18 ×20 ×77 mm
Weight: 0.1kg
Interface: USB Standard 2.0
Operating voltage: 21-30V DC，via the KNX bus
Current consumption, bus: <3.5mA/24V, <3mA/30V
Power consumption, bus: <90mW
USB voltage: 5V DC
Current consumption, USB: <100mA
Power consumption , USB: <500mW
Operation: -5 °C … +45 °C
Storage: -25 °C … +55 °C
Transport : – 25 °C … +70 °C
Humidity: <93%, except dewing
