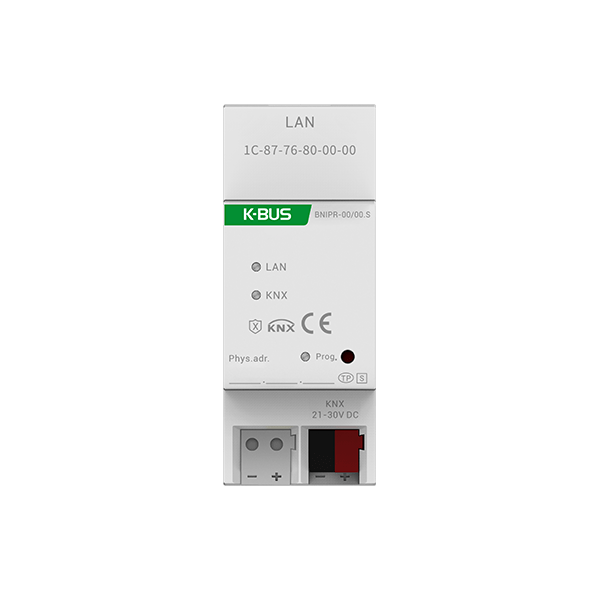

GVS KNX IP Router -Secure
£365.00
The IP Router can be used as line or backbone coupler. It provides a data connection between the upper KNXnet/IP line (main line or backbone) and the lower TP KNX bus line (sub line). The basic functionality of the IP Router is to couple the Ethernet with one or more KNX-TP lines. The IP Router features a galvanic isolation between the Ethernet and the KNX-TP line(s). Due to its flexibility the IP Router can be used as a line coupler e.g. to connect several KNX TP lines via Ethernet. And it can be used as a backbone coupler to connect several TP areas or different TP installation systems via Ethernet. The device supports the KNX Secure protocol (KNXnet/IP Security).
| Brand | GVS |
|---|
1 in stock
Dimension: 36 ×90 ×64 mm
Weight: 0.1KG
Housing,colour: Plastic housing, beige
Bus voltage: 21-30V DC, via the KNX bus
Bus current: <19.5mA, 24V; <15.5mA, 30V
Bus consumption: <470mW
Operation: -5 °C … +45 °C
Storage: -25 °C … +55 °C
Transport : – 25 °C … +70 °C
Humidity: <93%, except dewing
