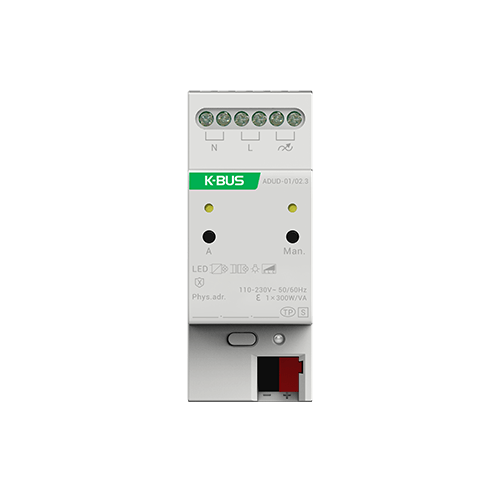

GVS KNX Universal Dimming Actuator – KNX Secure
Price range: £139.00 through £265.00
KNX Universal Dimming Actuator,1/2/4-Fold (hereinafter referred to as Dimmer) has 1/2/ 4output channels, and it can connect with dimmable lamps (such as incandescent lamps,halogen lamps, energy-saving lamps, LED, etc.), and you can dim, preset scene, switch theselamps or other operations via the bus. In addition, as well as KNX Data Secure.
| Folds | 1, 2, 4 |
|---|---|
| Brand | GVS |
Specifications
Bus voltage: 21-30V DC，via the KNX bus
Bus current: <6mA/24V, <5.5mA/30V (1 fold) <7mA/24V, <6mA/30V (2 fold) <7.5mA/24V, <6.5mA/30V (4 fold)
Bus consumption: <165mW(1fold); <180mW(2fold); <195mW(4fold)
Dimming channel: 1/2/4 folds,separate phase connection
Connection; KNX: Bus connection terminals
Outputs: Screw terminals
Wire Range: 0.2-2.5mm² (1 fold); 0.2-6.0mm²(2/4 fold)
Mounting: On 35mm mounting rail
Operation: -5 °C … +45 °C
Storage: -25 °C … + 55 °C
Transport : -25 °C … + 70 °C
Humidity: <93%, except dewing
Parturient ut id tellus vulputatre ac ultrlices a part ouriesnt sapien dignissim partu rient a a inter drum vehicula. Ornare metus laoreet tincidunt eros rolem tristique pretium malada.
Cras rhoncus vivamus luctus platea arcu laoreet selm. Curae est condenectus sed hac a parturient vestibulum.
GVS KNX 1-10V Dimming Actuator 4-fold
Price range: £165.00 through £175.00
GVS KNX Air Quality Sensor V2
£305.00
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
MDT KNX Dimming Actuator with Active Power Measurement
The industrial version of the MDT Switch Actuator AZI with active power measurement combines the switching capability of high inrush currents with the accuracy of active power measurement. Current measurement per channel and total current measurements are possible. The energy consumption is recorded by the integrated active power meter. The actuator is equipped with bistable relays for currents up to 16/20 A and a C-load up to 200 µF.
MDT KNX Switch Actuator with Power Measurement
The industrial version of the MDT Switch Actuator AZI with active power measurement combines the switching capability of high inrush currents with the accuracy of active power measurement. Current measurement per channel and total current measurements are possible. The energy consumption is recorded by the integrated active power meter. The actuator is equipped with bistable relays for currents up to 16/20 A and a C-load up to 200 µF.
Reviews
There are no reviews yet.
